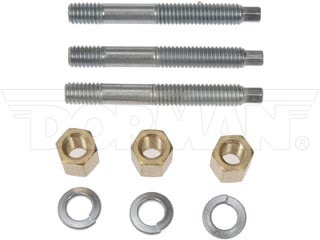

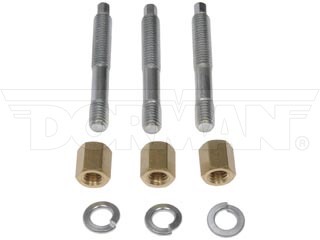

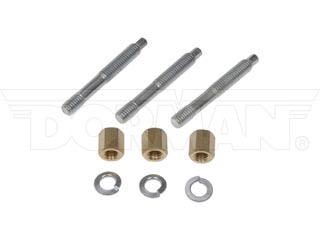

Exhaust flange stud kit
Artikelnummer: 03113
Thread Size: 3/8-16; "A" Thread Length; 1-5/8"; "B" Thread Length: 7/16"; Shoulder Length: 1-3/16"; Overall Length: 3-1/4" |
Dorman's Exhaust Flange Stud & Nut provides you with the proper flange stud and nut for replacing your manifold. Save time and energy by having the right hardware on hand when you need it. Features & Benefits:
|
| DORMAN 29201 Specifications | |
|---|---|
| Bolt Grade | 5 |
| Dog Point Fastener | Yes |
| Dog Point Fastener | No |
| End Stud Thread Diameter | 3/8-16 |
| Item Grade | Regular |
| Item Grade | Regular |
| Material | Metal |
| Material | Metal |
| Nut Color | Brass |
| Nut Head Type | Hex |
| Nut Material | Wrought Copper Alloys |
| Nut Thickness (IN) | 0.66 |
| Nut Thread Diameter (IN) | 0.375 |
| Nut Thread Type | Coarse |
| Package Contents | 3 Double Ended Studs; 3 Split Lock Washers; 3 Nuts |
| Package Contents | 3 Studs; 3 Nuts and 3 Lock Washers |
| Pilot Point Fastener | No |
| Pilot Point Fastener | No |
| Stud Color | Zinc and Clear Chromate |
| Stud End 1 Thread Type | Coarse |
| Stud Length (IN) | 3 |
| Stud Length (IN) | 3.25 |
| Stud Material | Steel |
| Thread Size #1 | 3/8-16 |
| Thread Size #1 | 3/8 in-16 |
| Thread Size #2 | 3/8-16 |
| Thread Size #2 | 3/8 in-16 |
